PPC CLAS validation

Benchmark source: GNSS測位エコシステムの統合を目指して - モダンな次世代RTKLIB「MRTKLIB」の公開

Current verdict

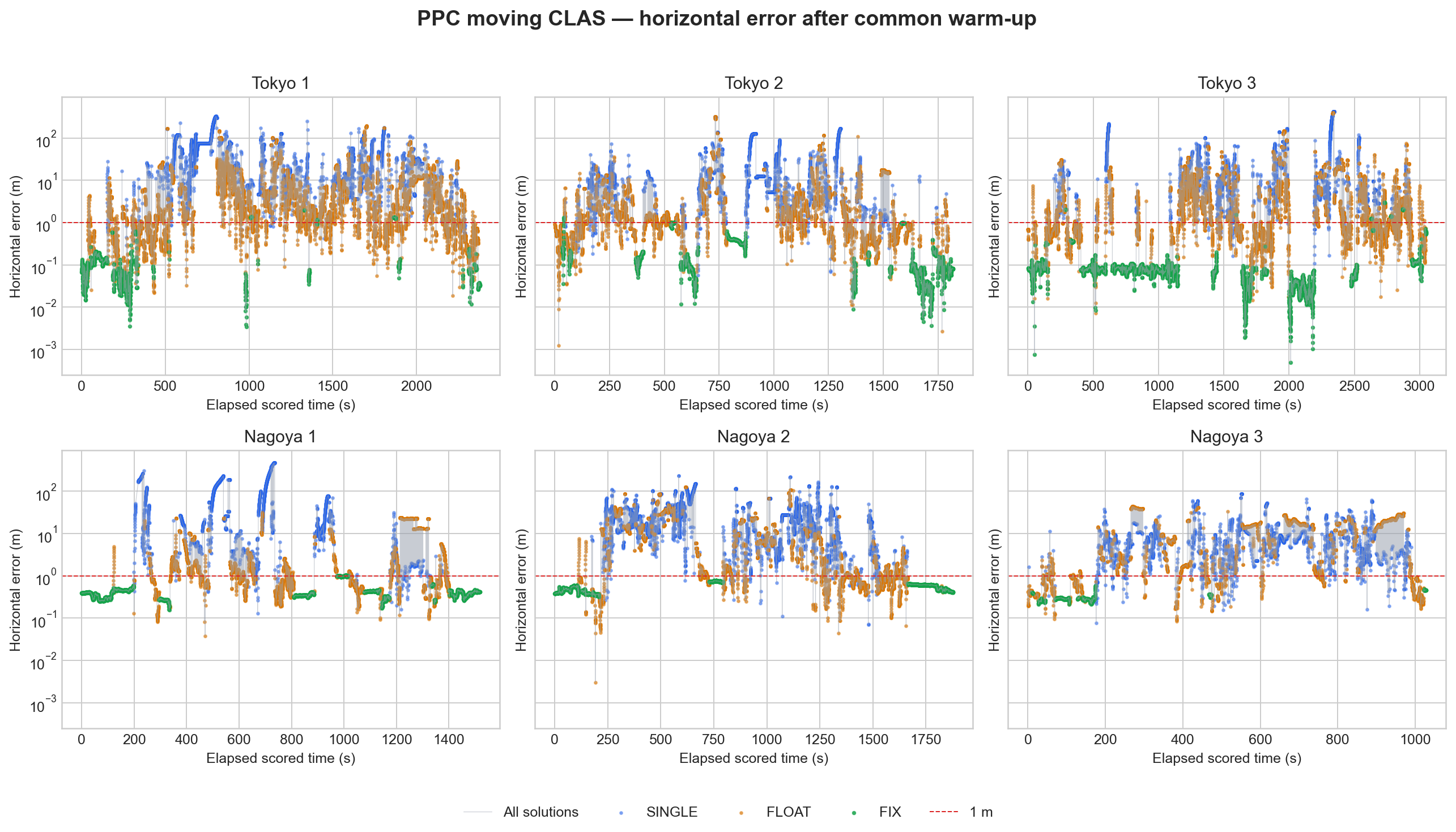

The full six-run PPC moving-data hard sign-off passes. Across 58,259 scored epochs LibGNSS++ produced 14,635 FIX epochs (25.120582%) with 0.359365 m aggregate FIX RMS2D, 0.347847 m FIX p68, and zero FIX epochs above 3 m. Every run covers 100% of the reference interval and at least 99.95% of observation epochs.

The accepted policy keeps the ordinary CLAS direct state-DD floor at six rows. Only an uninterrupted valid ambiguity hold from a preceding full-row FIX may publish a reduced four-row solution, and the bridge is capped at five consecutive reduced-row publications. Reduced-row results are publication-only: they do not replace or apply the held constraints to the float filter, advance the internal FIX lifecycle, or seed quarantine. Any non-FIX publication or early return clears bridge eligibility.

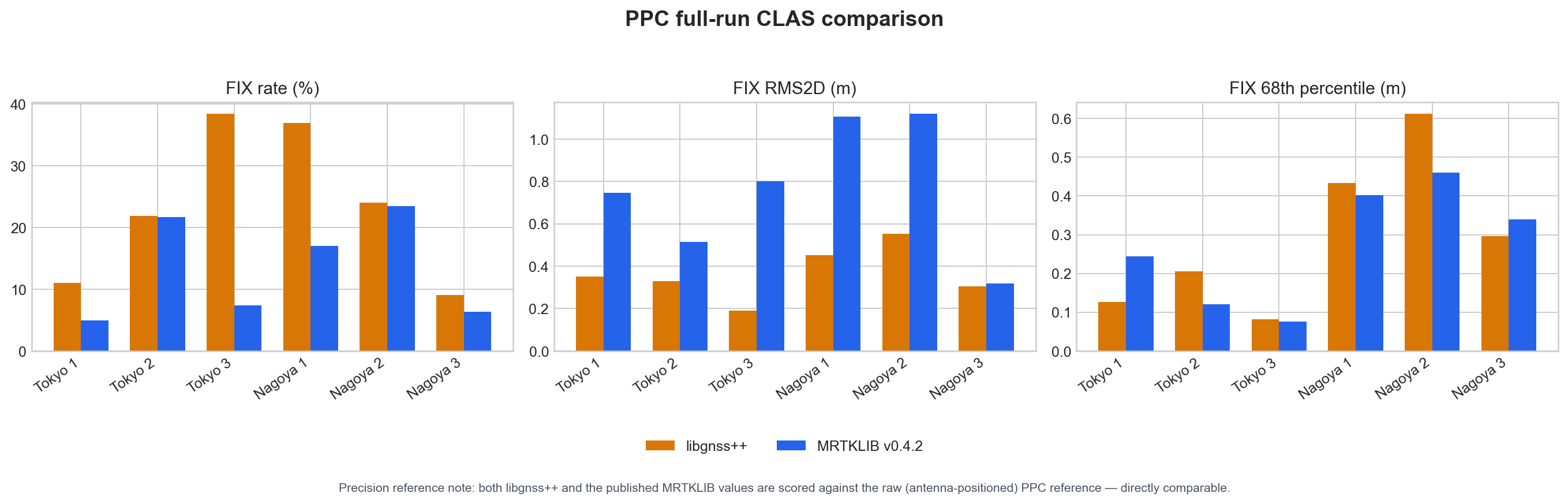

Against the fixed baseline this adds 176 FIX epochs and loses none. Each of the six runs independently meets or exceeds the published MRTKLIB v0.4.2 FIX rate, beats its FIX RMS2D, retains at least 99% time and epoch coverage, and has zero FIX epochs above 3 m. Tokyo 2 now clears its narrow rate deficit at 21.859186% versus 21.7%, with 0.329495 m FIX RMS2D versus 0.514 m. Nagoya 2's prior unsafe tail is absent: its maximum FIX error is 0.767281 m.

p68 and TTFF remain soft diagnostics rather than hard gates. p68 passes on Tokyo 1 and Nagoya 3 and misses on the other four runs; TTFF passes on five runs and misses only on Nagoya 3 (27 s versus 9 s). Aggregate all-solution, FLOAT, and SINGLE RMS2D are 36.522236 m, 16.884790 m, and 70.360920 m.

The promoted production defaults are a held minimum of four DD rows and a maximum publication streak of five. The previous behavior remains available with explicit environment settings:

GNSS_PPP_CLAS_AR_HELD_MIN_DD_ROWS=6
GNSS_PPP_CLAS_AR_HELD_MAX_PUBLICATION_STREAK=1

The precision comparison is directly comparable: both implementations are scored against the raw, already antenna-positioned PPC reference with no lever-arm transform.

Reference-point methodology

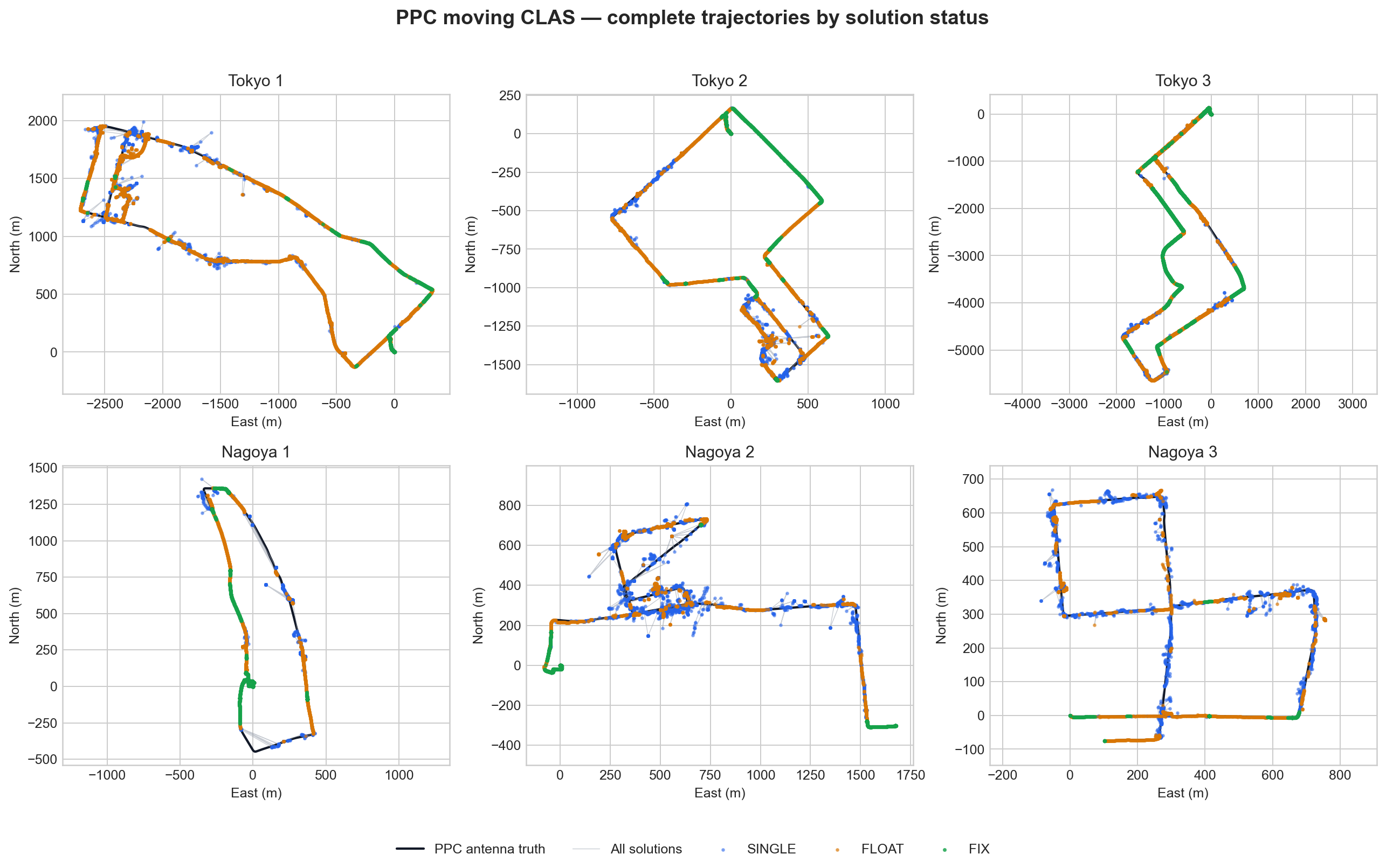

PPC's reference.csv is already an antenna-positioned trajectory, not an IMU/vehicle-frame trajectory: projecting the no-lever-arm fixed-epoch error vectors into the vehicle body frame (via the reference heading) on Nagoya run3 gives a mean of (0.075, 0.088) m — essentially zero — rather than the (0.593, -0.670) m horizontal offset that the city-specific vehicle→antenna lever arm would produce if the reference were truly at the IMU. Earlier tables nonetheless applied that lever-arm correction to the reference on top of an already-antenna-positioned reference, a double correction that inflated FIX RMS2D by roughly 0.89 m (Nagoya) and 0.31 m (Tokyo), common-mode across epochs. A per-epoch error correlation of r=0.991 against a real MRTKLIB v0.5.1 rerun on 206 co-fixed Nagoya run3 epochs confirms the bias was reference-side, not solver-side. The published MRTKLIB v0.4.2 targets were computed without any lever-arm transform (raw reference), so the raw-reference scoring used from this point forward is the apples-to-apples basis for comparison. One side effect of the old bias was flattering: in a historical baseline it shifted a 19-epoch Nagoya 2 burst from an honest 3.200 m maximum to 2.486 m, creating a false "no FIX epoch above 3 m" claim. The accepted candidate removes that burst (Nagoya 2 maximum 0.767281 m), but raw-antenna scoring remains essential for an honest gate.

Non-FIX continuity fix

MRTKLIB's SPP least-squares path writes a finite current position before its final chi-square validation. Native CLAS rejected that candidate and could publish the last accepted SPP position for a long rejection stretch, allowing the reported SINGLE error to grow as the vehicle moved. Directly admitting the rejected candidate to the filter improved Tokyo 2 but materially regressed Nagoya 2, so that approach was rejected.

The accepted implementation keeps the existing filter, float_count, cntdiffp, maxdiff, and AR lifecycle unchanged. A separate output-only tracker publishes a validation-rejected SPP candidate only when its per-step motion is causal and it remains within 150 m of the last trustworthy publication. This prevents both stale-position coast and a sequence of small but cumulatively unbounded SPP jumps. The six-run audit found zero status differences and zero non-SINGLE coordinate differences versus the prior baseline.

Historical 480-second probe (not final sign-off)

The values below predate the city-specific vehicle-to-antenna lever-arm correction. They are retained only to document the earlier false-FIX diagnosis and are not used by the full six-run acceptance result. (The lever-arm transform mentioned below was later found to double-correct an already-antenna-positioned reference; see "Reference-point methodology" above — the current six-run acceptance result scores against the raw PPC reference, matching the MRTKLIB convention.)

  • Dataset: PPC Tokyo run2, first 2400 receiver epochs (480 seconds at 5 Hz)
  • Solver: kinematic CLAS OSR, dynamics model enabled, parity environment gates
  • Historical reference: published reference.csv coordinates without a lever-arm transform
  • Warm-up: discard the first 60 matched epochs
  • FIX: LibGNSS++ status 6 (article NMEA quality 4 equivalent)
  • TTFF: start of the first run of at least 30 consecutive FIX epochs
  • 1sigma: 68th percentile of FIX horizontal error, matching the article's p68_2d_fix definition

Tokyo run2 result

Metric MRTKLIB v0.4.2 full run LibGNSS++ 480 s probe Assessment
Fix rate 21.7% 5.060% Partial-window value; not directly comparable
FIX RMS2D 0.514 m 0.114 m Better than target in this window
FIX 68th percentile 0.120 m 0.091 m Better than target in this window
TTFF 368 s 301.2 s 66.8 s earlier in this window

The corrected probe contains 2332 scored epochs and 118 fixed epochs:

  • First 120 seconds: 25 FIX, RMS2D 0.192 m, p68 0.194 m.
  • About 230--260 seconds: zero FIX. The former 34 approximately 10 m false fixes are now 32 FLOAT and 2 SINGLE solutions.
  • 260--370 seconds: 32 FIX, RMS2D 0.094 m, p68 0.076 m. The first 30-epoch continuous run starts at 301.2 seconds.
  • 370--480 seconds: 61 FIX, RMS2D 0.074 m, p68 0.084 m.

The root cause was an incomplete MRTKLIB maxdiffp reset. With dynamics enabled, MRTKLIB clears the complete filter state after SOLQ_NONE; LibGNSS++ previously reset only position and velocity, leaving tightly constrained stale ionosphere and ambiguity states attached to the new SPP position. Clearing the full filter and AR state removed all 34 false fixes while preserving all 25 early valid fixes bit-for-bit. In the 1300-epoch A/B window, FIX RMS2D improved from 7.640 m to 0.192 m.

Artifacts

Next development gates

  1. Improve the four remaining p68 soft misses without reducing FIX rate.
  2. Improve Nagoya 3 TTFF while preserving its narrow 0.318 m RMS2D margin.
  3. Improve FLOAT recovery; the publication-only held-DD policy intentionally leaves the float-filter lifecycle unchanged.
