Benchmarks

The current gnssplusplus develop branch leads RTKLIB demo5 on PPC positioned-epoch precision and Fix rate with no Phase 2 opt-in flags. Positioning rate is tracked separately because no-solution gaps still matter; the PPC coverage profile keeps valid SPP/float fallback epochs and now exceeds RTKLIB demo5 on Positioning rate for all six public Tokyo/Nagoya runs. PPC is the primary public RTK benchmark here because it bundles survey-grade receiver observations, reference-station observations, broadcast navigation data, and reliable trajectory truth. It is not used as a proprietary receiver-engine comparison. Treat the UrbanNav Odaiba snapshot below as a Tier-1 public smoke/regression run; the explicit --preset odaiba opt-in profile beats demo5 on Fix count, rate, Hmed, Hp95, and Vp95 for that scene.

For the later PPC smoother-stack sanity check, see ppc_smoother_oracle_report.md. That report does not add a smoother performance claim: the deployable-only fixed smoother check preserved no reference-free gain, so the benchmark claim here remains the runtime solver/coverage profile below.

All runs below use --mode kinematic --preset low-cost --match-tolerance-s 0.25. The coverage profile additionally uses --no-arfilter plus the default low-speed non-FIX drift guard, SPP height-step guard, and FLOAT bridge-tail guard, with --ratio 2.4. The kinematic post-filter cascade was removed in PR #36 (single-epoch height-step drop only), so --no-kinematic-post-filter is no longer required for coverage parity with the default profile.

Real-time work should stay on the causal solver path: no smoother, no reference-selected segment switch, and no reference input at runtime. The PPC coverage matrix records solver_wall_time_s, realtime_factor, and effective_epoch_rate_hz for every run and can now fail the six-run replay with --require-solver-wall-time-max, --require-realtime-factor-min, and --require-effective-epoch-rate-min. Truth-derived wrong-FIX tables remain post-run diagnostics only; they are used to reject risky runtime gates, not to choose live output.

Use scripts/run_ppc_realtime_guard_sweep.py to compare deployable guard profiles with those runtime gates. The built-in profiles keep the coverage baseline, a fixed-update residual/NIS guard, and a non-FIX reset profile in one report so candidate gates can be rejected before any smoother work is revisited.

2026-04-26 truth-validation baseline

Truth-validation against PPC reference.csv (5 Hz ECEF) on the six public Tokyo/Nagoya runs, after PR #29-#36 stack (develop @ 5101549). Default config (--mode kinematic, no opt-in flags). Solution rows joined by (GPS Week, GPS TOW) and classified against the reference: fix_ok is Status==FIXED and ECEF 3D error ≤ 0.10 m; fix_wrong is FIXED but error

0.10 m; coverage is matched-rows / reference-rows.

Metric	Pre-stack default	Post-stack default (PR #29-#36)	Change
coverage (matched / reference)	47.8%	85.0%	+37.2 pp
fix_wrong / total fixes	28.9%	19.4%	-9.5 pp
fix95% (m)	0.81	0.19	-77%
fix_ok count	16,809	3,380	-80%
nagoya_run2 fix95% (m)	46.85	0.28	-99%

The fix_ok drop was isolated to PR #35 (--max-pos-jump default 5 m); a sweep against 0 / 5 / 7.5 / 10 (six runs each) shows AR-candidate jumps cluster at <5 m (correct) or >10 m (wrong-FIX). The 5 m gate is at the inflection point: relaxing to 7.5 m gains only +151 epochs (+4.5%) while adding wrong-FIX, and disabling it returns to the pre-stack fix_wrong/fixes collapse (31.3%) and nagoya_run2 fix95% 46.92 m. Wide-lane AR (--enable-wide-lane-ar) was tested as a default and rejected: it cuts fix_ok to 1,515 and pushes fix_wrong/fixes to 41.5% (tokyo_run2 fix95% 17.96 m). Wide-lane AR remains opt-in via --preset odaiba.

Reproduction command and per-run table are in _carryover_2026-04-26/output/baseline_comparison.md. The scoring script is _carryover_2026-04-25/scripts/score_solution_vs_truth.py.

Public Moving-RTK Benchmark Matrix

The public-data strategy is intentionally multi-dataset. A single UrbanNav run is useful because it exposes u-blox and Trimble rover observations with an independent Applanix reference, but it is only one environment. Use gnss public-rtk-benchmarks to keep adapter status and caveats visible:

python3 apps/gnss.py public-rtk-benchmarks --format markdown

Profile	Status	Role	Reference	Receiver artifacts	Adapter	Caveat
PPC-Dataset Tokyo/Nagoya	primary-public-rtk-signoff	survey-grade receiver observation sign-off	reference.csv trajectory truth for Tokyo/Nagoya runs	Septentrio mosaic-X5 rover RINEX plus Trimble Alloy/NetR9 base RINEX/nav	native ppc-demo and ppc-rtk-signoff layout with receiver hardware provenance	survey-grade observations and reference truth are bundled; proprietary receiver-engine solution is not treated as the benchmark target
UrbanNav Tokyo Odaiba/Shinjuku	wired-path-overrides	Tier-1 public smoke	Applanix POS LV620 reference.csv	u-blox F9P rover RINEX plus Trimble NetR9 rover/base RINEX	ppc-rtk-signoff path overrides with --commercial-rover	two Tokyo runs; Trimble observations are solved by libgnss++, not the Trimble RTK engine
smartLoc urban GNSS	receiver-fix-signoff	urban NLOS stress	NovAtel SPAN differential RTK/IMU reference	u-blox EVK-M8T mass-market raw/fix data plus NLOS labels	smartloc-adapter exports receiver/raw data; smartloc-signoff gates receiver-fix metrics	solver sign-off still needs compatible nav/base inputs beyond the public receiver-fix path
Google Smartphone Decimeter Challenge	candidate	phone-grade stress	precise ground truth for raw GNSS and IMU traces	Android raw GNSS measurements and sensor logs	needs smartphone measurement converter; not a commercial RTK receiver path	useful stress data, but phone antenna/clock behavior is a different receiver class
Ford Highway Driving RTK	candidate	large-scale highway coverage	INS coupled with survey-grade GNSS receivers	production automotive GNSS over long highway drives	needs Ford log normalizer and highway-specific thresholds	excellent scale, but not an urban canyon RTK receiver comparison
Oxford RobotCar RTK ground truth	candidate	long-term localization coverage	post-processed raw GPS/IMU/static-base centimeter ground truth	RobotCar traversals with reference localization products	needs RobotCar reference mapper and observation availability check	strong localization benchmark, but indirect for commercial RTK receiver claims

PPC Tokyo Precision Profile

PPC receiver hardware provenance is emitted in every ppc-demo summary under receiver_observation_provenance. Tokyo uses a Septentrio mosaic-X5 rover with a Trimble AT1675 antenna and a Trimble Alloy / Zephyr Geodetic 2 reference station. Nagoya uses a Septentrio mosaic-X5 rover with a Trimble Zephyr 3 Rover antenna and a Trimble NetR9 / Zephyr 3 Base reference station. The field receiver_engine_solution_available is deliberately false; this benchmark is about solving survey-grade receiver observations against reference truth, not about matching a proprietary receiver RTK engine.

Run	gnssplusplus Fix / rate	RTKLIB Fix / rate	Hmed (m)	Vp95 (m)
run1	3572 / 81.26%	2418 / 30.52%	0.037 vs 1.567 (42×)	1.259 vs 36.703 (29×)
run2	4674 / 80.12%	2127 / 27.58%	0.016 vs 0.835 (52×)	0.313 vs 42.624 (136×)
run3	7516 / 86.84%	5778 / 40.55%	0.012 vs 0.666 (56×)	0.137 vs 24.521 (179×)

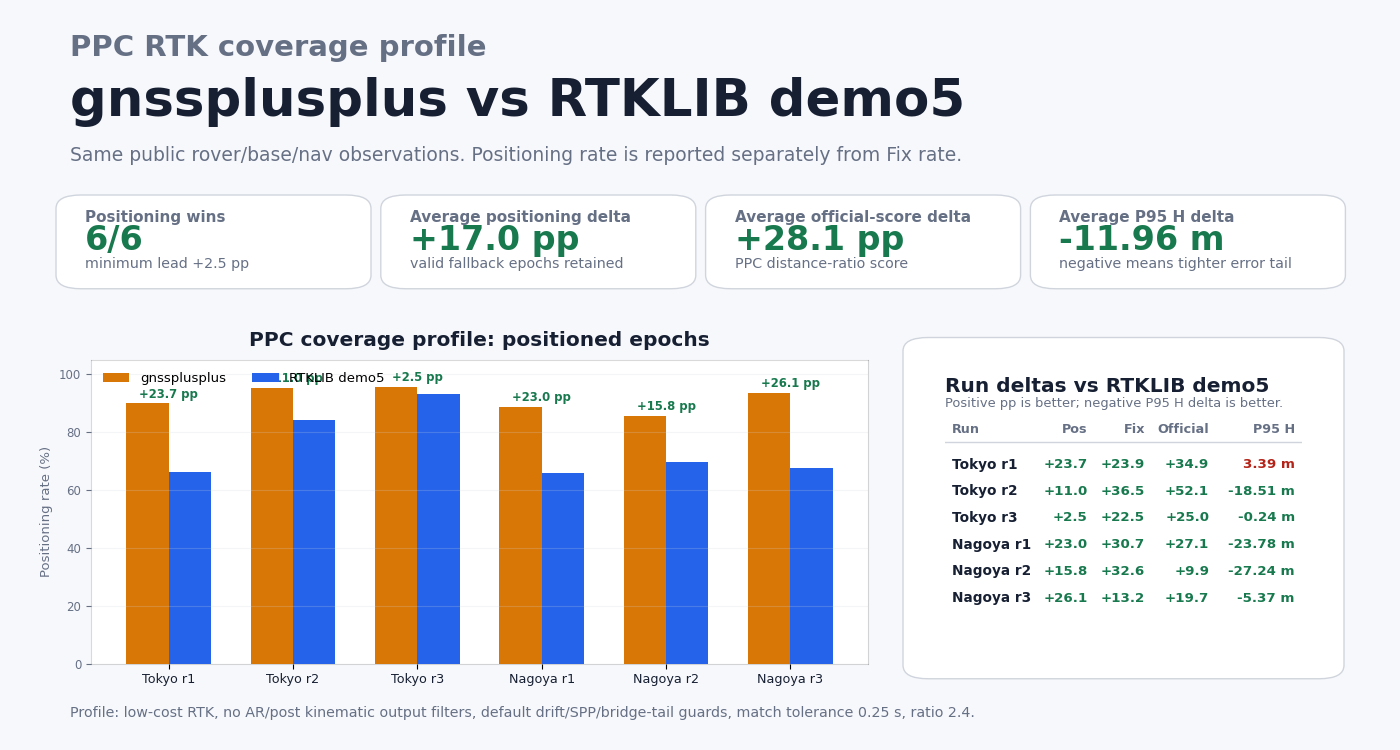

This fixed-output table is the precision-oriented view. The coverage table below is the sign-off view for no-solution gaps and fallback-positioned epochs.

PPC Coverage Profile

Run	gnssplusplus Positioning	RTKLIB Positioning	Delta	gnssplusplus Fix	RTKLIB Fix	PPC official score	RTKLIB official score	Official delta	P95 H delta
Tokyo run1	90.0%	66.3%	+23.7 pp	54.4%	30.5%	34.9%	0.0%	+34.9 pp	+3.39 m
Tokyo run2	95.3%	84.3%	+11.0 pp	64.1%	27.6%	69.0%	16.9%	+52.1 pp	-18.51 m
Tokyo run3	95.7%	93.1%	+2.5 pp	63.0%	40.5%	60.6%	35.6%	+25.0 pp	-0.24 m
Nagoya run1	88.8%	65.8%	+23.0 pp	64.5%	33.8%	49.5%	22.4%	+27.1 pp	-23.78 m
Nagoya run2	85.6%	69.8%	+15.8 pp	51.4%	18.8%	20.9%	11.0%	+9.9 pp	-27.24 m
Nagoya run3	93.8%	67.7%	+26.1 pp	27.1%	13.9%	27.4%	7.6%	+19.7 pp	-5.37 m

Across these six public runs, the coverage profile averages +17.0 pp Positioning-rate lead, +28.1 pp PPC official-score lead, and -11.96 m P95 horizontal-error delta versus RTKLIB demo5.

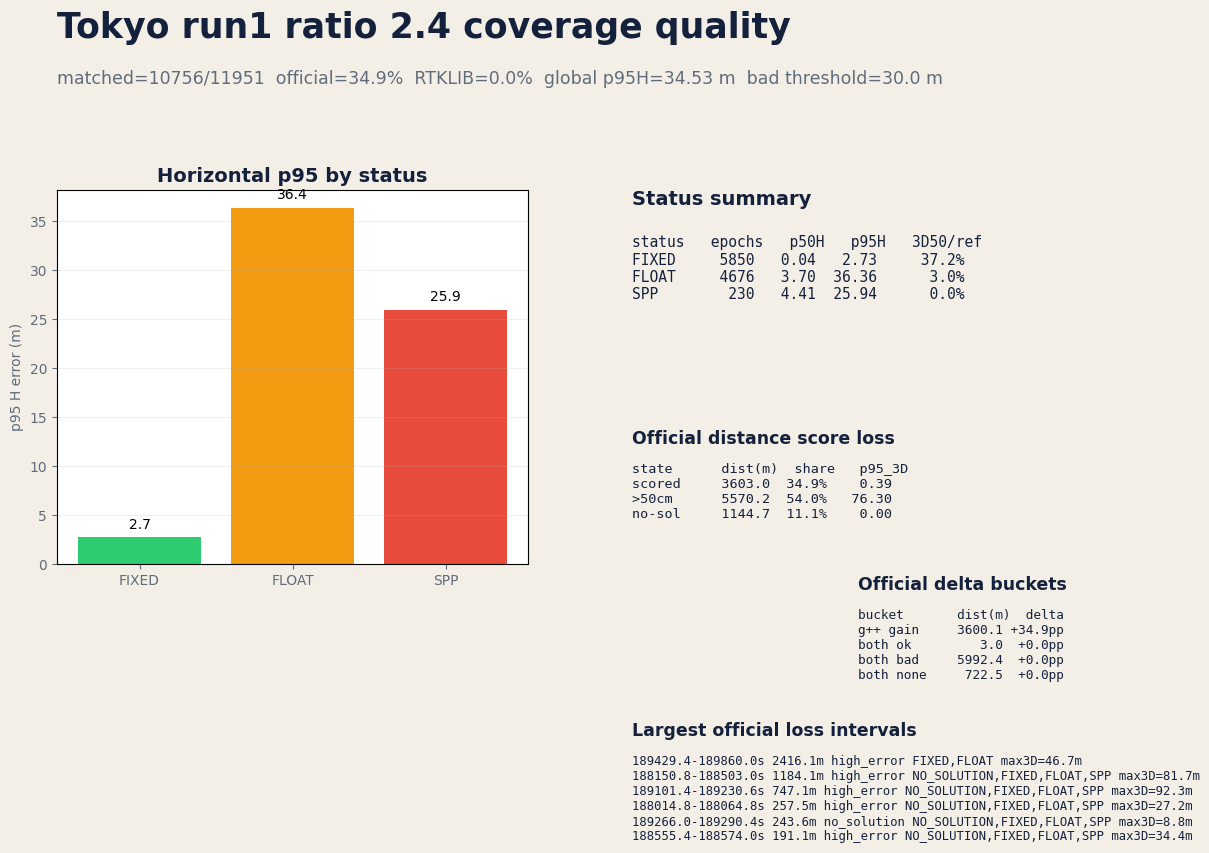

Tokyo run1 coverage-quality split

Lowering the RTK ambiguity ratio threshold to 2.4 lifts Tokyo run1 Positioning to 90.0% (+23.7 pp over RTKLIB), Fix to 54.4%, and PPC official score to 34.9% (+34.9 pp over RTKLIB). This is an explicit coverage and official-score trade: Tokyo run1 P95H is now +3.39 m versus RTKLIB, while the six-run average still keeps a -11.96 m P95H delta and improves the average PPC official-score lead to +28.1 pp. The official loss split shows 34.9% scored distance, 54.0% 50cm-plus error distance, and 11.1% no-solution distance, so the next improvement is still mostly accuracy recovery inside positioned FLOAT/FIX spans rather than simply filling gaps. The full machine-readable reports are ppc_tokyo_run1_coverage_quality.json and ppc_tokyo_run1_coverage_bad_segments.csv; the bad-segment CSV includes status counts, adjacent FIX-anchor gap/speed, solution path length, and FIX-anchor bridge residuals for continued FLOAT-tail design. Use scripts/analyze_ppc_coverage_quality.py --official-segments-csv to emit the full per-reference-distance official score ledger.

Status	Epochs	P50 H	P95 H	3D <= 50 cm / reference	P95H exceedance share
FIXED	5850	0.04 m	2.73 m	37.2%	16.5%
FLOAT	4676	3.70 m	36.36 m	3.0%	83.5%
SPP	230	4.41 m	25.94 m	0.0%	0.0%

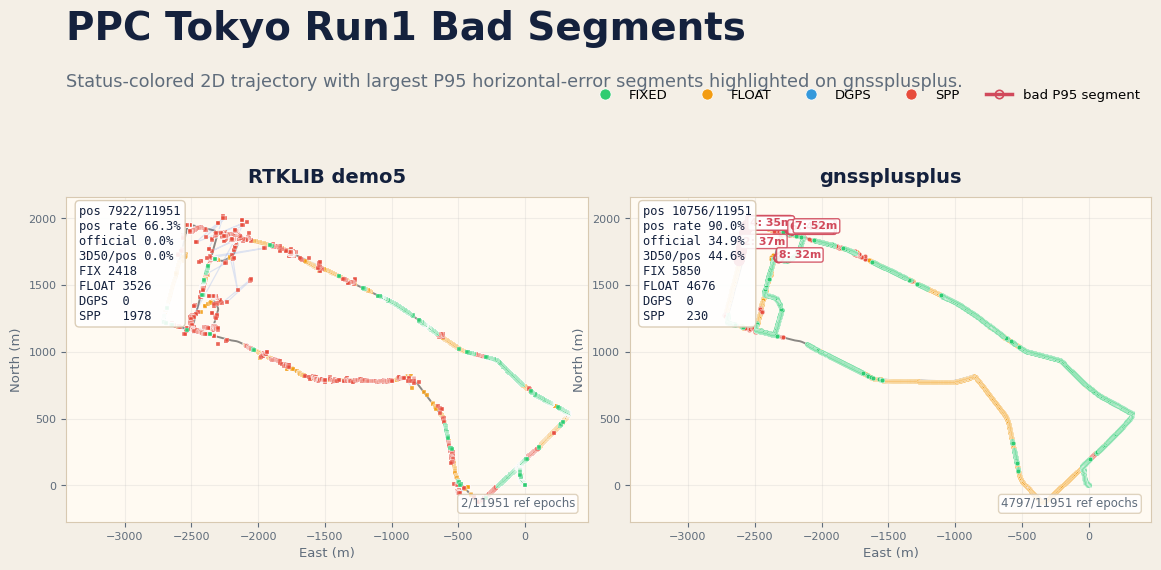

The bad-segment trajectory overlay keeps the same status colors and marks the largest horizontal-error intervals on the gnssplusplus panel. The dominant long segments are FLOAT-heavy around 188301-188437 s, while the worst short spikes around 189080-189084 s are FIXED bursts. That split is useful because FLOAT-tail cleanup and false-fix validation need different guards. The default-off --fixed-bridge-burst-guard --fixed-bridge-burst-max-residual 20 pass removes 12 epochs across 3 short FIX bursts on Tokyo run1: Positioning moves 90.00% -> 89.90%, Fix 54.39% -> 54.34%, PPC official 34.92% -> 34.89%, P95H 34.53 m -> 34.41 m, and max H 51.63 m -> 47.29 m. It is therefore documented as an opt-in tail-diagnostic guard, not as the default coverage profile. Combining that guard with --nonfix-drift-max-residual 4 --nonfix-drift-min-horizontal-residual 6 is a stronger P95-cleanup diagnostic: Tokyo run1 P95H moves to 30.61 m and max H to 47.29 m, while Positioning falls to 88.53% and PPC official stays effectively flat at 34.89%. Swept across all six public Tokyo/Nagoya runs, the same cleanup profile still beats RTKLIB demo5 on Positioning for every run (average +15.7 pp) and keeps the PPC official-score lead unchanged (+28.1 pp), but costs 1.33 pp average Positioning versus the coverage profile. P95H improves on 3/6 runs with an average +0.69 m tail gain; the horizontal residual floor reduces Nagoya run3 over-pruning from 13.90 pp to 3.48 pp Positioning cost. Keep that profile for isolating long stationary FLOAT drift and false-fix bursts, not for the Positioning-rate sign-off.

For the PPC official-score chase, --max-consec-float-reset 10 is the first large non-IMU lever found so far. Replayed on the same six public runs, it lifts the distance-weighted official score from 48.66% to 58.90% and the run-average official lead over RTKLIB from +28.1 pp to +37.9 pp. It is still below the PPC2024 second-place Public score of 77.6% by 18.70 pp (about 8.66 km of additional scored reference distance), and Tokyo run3 no longer beats RTKLIB on Positioning. Treat it as the current official-score candidate, not as the coverage sign-off profile.

Follow-up spot checks kept the next knobs experimental: --max-consec-nonfix-reset 10 raised Nagoya run2 Positioning/Fix but reduced official score 31.48% -> 30.18%, while --max-postfix-rms 0.20 nudged Nagoya run2 to 31.80% and left Nagoya run3 effectively flat. Use these as sweep controls before promoting any profile.

The official-loss analyzer preserves solver Ratio/Baseline telemetry plus RTK DD-update diagnostics (RTKObs, phase/code row counts, suppressed outliers, prefit/post-suppression residual RMS/max). These fields make FLOAT high-error segments diagnosable by measurement-update quality instead of status/ratio alone. A targeted Nagoya run2 loss-window replay (555940-556070 s) shows scored FLOAT prefit residual RMS around 0.25 m versus FLOAT high-error median 4.54 m, with median max residual 20.0 m in the high-error group. The --max-float-prefit-rms / --max-float-prefit-max gates use that residual signal directly by reporting the FLOAT epoch but resetting ambiguities for the next epoch after --max-float-prefit-reset-streak consecutive no-fix FLOAT epochs exceed either threshold. A fallback-style prototype reduced full-run score by replacing usable FLOAT epochs with SPP/no-solution, so the implemented gate is reset-only and defaults to a 3-epoch streak. On the full six-run PPC replay, 6 / 30 / streak 3 improves the residual gate prototype from 54.14% (fallback) and 54.39% (single-epoch reset-only) to 58.52% weighted official score. Sweeping the same thresholds gives 58.80% at streak 5 and 58.83% at streak 8; a streak 12 probe loses the Tokyo run1 gain, so simply delaying resets eventually converges back toward the baseline. The best measured residual gate still trails the plain reset10 baseline (58.90%) because positioning loss outweighs the p95 cleanup. Keep it opt-in while the next selector adds motion/continuity context. scripts/analyze_ppc_residual_reset_sweep.py compares those full-run summaries and computes selector upper bounds. On reset10 plus streak 3/5/8, the global profile winner is still baseline (58.90%), a city selector reaches 58.97% by applying streak 8 only to Tokyo, and a per-run oracle reaches 58.98% by applying streak 5 to Tokyo run1, streak 8 to Tokyo run2, and baseline elsewhere. That is only 35.6 m of official scored-distance upside, so the next target is a segment-level trigger rather than another whole-run threshold. scripts/analyze_ppc_profile_segment_delta.py now compares a baseline .pos and one or more candidate .pos files against the same PPC reference.csv and emits official-score gain/loss segments, score/status transitions, and residual diagnostics. Use it before turning a whole-run candidate into a selector. scripts/analyze_ppc_segment_selector_sweep.py then consumes those segment CSVs and ranks observable candidate-selection rules by net official-distance gain, gain retention, loss exposure, and run-by-run behavior. The opt-in --min-float-prefit-trusted-jump gate starts that selector path: high-residual FLOAT epochs only reset after the streak threshold when the FLOAT position is also at least the configured distance away from the last trusted FIX/FLOAT state. The default 0 preserves residual-only behavior. A focused 6 / 30 / streak 5 spot check shows why the selector still needs run/segment context: Tokyo run1 improves to 55.91% official score at 0.5 m (+44.2 m versus reset10), while 2/4/8 m fall back to 55.52% (+3.7 m). The same 0.5 m gate breaks Tokyo run2 (73.61%, -377.2 m), Tokyo run3 (66.96%, -9.9 m), Nagoya run1 (49.10%, -8.2 m), Nagoya run2 (30.82%, -31.6 m), and Nagoya run3 (37.90%, -25.2 m). The segment-delta report shows why this cannot be a city-level default: Tokyo run1 jump0.5 gains 177.8 m and loses 133.6 m, while Tokyo run2 gains only 7.1 m and loses 384.3 m. Across all six runs, candidate-all is -407.9 m versus reset10, so the selector must be segment-local. Sweeping segment-local rules over all six jump0.5 probes and allowing local numeric-threshold refinement flips that global loss to +301.5 m. The refined rule requires candidate status FIXED, candidate baseline 940.785..9053.95 m, and candidate_num_satellites >= 8. It keeps 317.0 m of gain, exposes 15.5 m of loss, reduces Tokyo run2's damage from -377.2 m to +2.0 m, and keeps every run non-negative. Applying the rule with scripts/apply_ppc_dual_profile_selector.py writes real selected .pos outputs and reuses the normal PPC metrics path. Across those six probes, weighted official score becomes 59.55% versus 58.90% for reset10 (+301.5 m, +0.65 pp) and 58.02% for candidate-all. Positioning remains positive on every run, averaging +0.33 pp versus reset10, while Fix averages +1.69 pp. The matrix aggregation and scorecard come from scripts/analyze_ppc_dual_profile_selector_matrix.py.

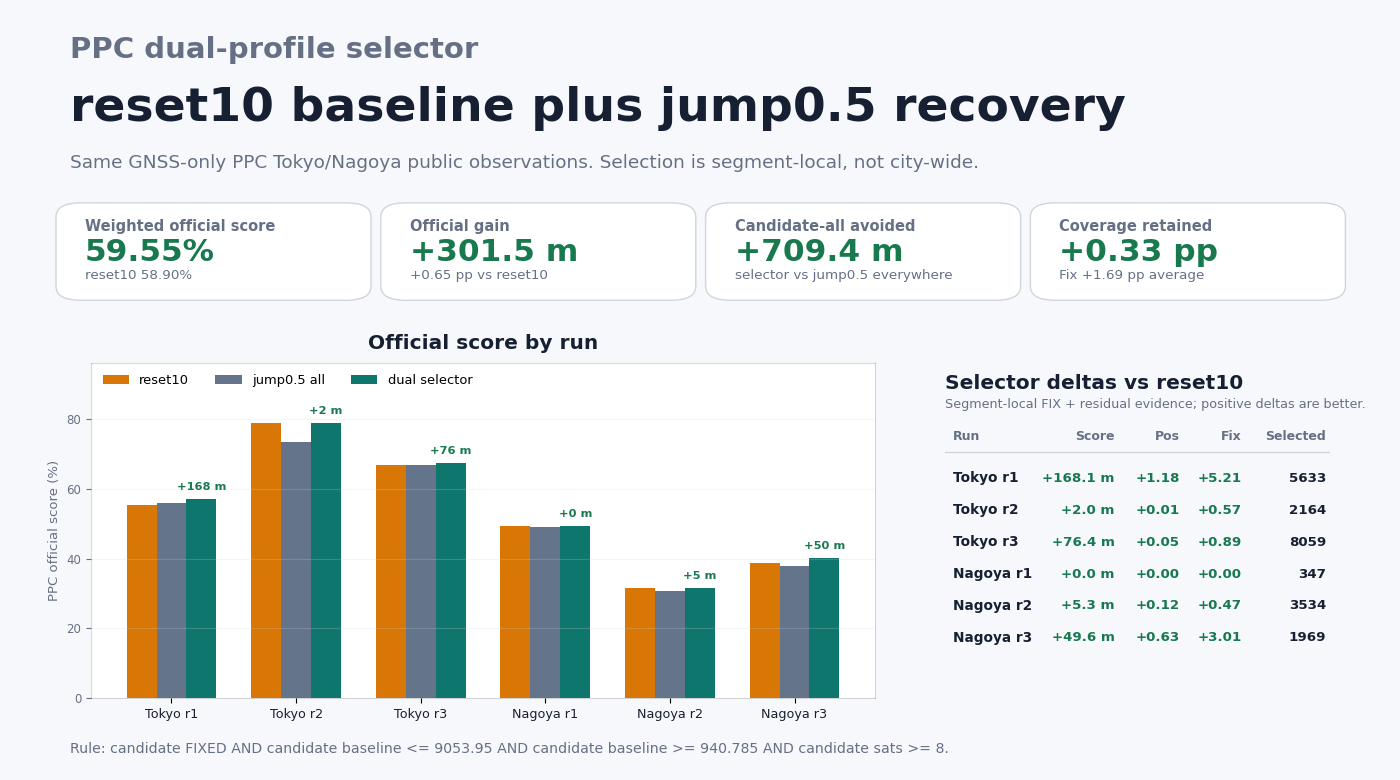

scripts/analyze_ppc_segment_selector_leave_one_run_out.py retrains the segment selector with each run held out once. With the same three-condition sweep settings, holdout aggregate remains positive (+26.8 m) and beats candidate-all by +434.6 m, with 5 / 6 non-negative holdout runs. The Tokyo run2 holdout still loses 85.5 m, so the baseline-band rule is treated as an in-sample diagnostic until the selector objective explicitly optimizes run-level robustness.

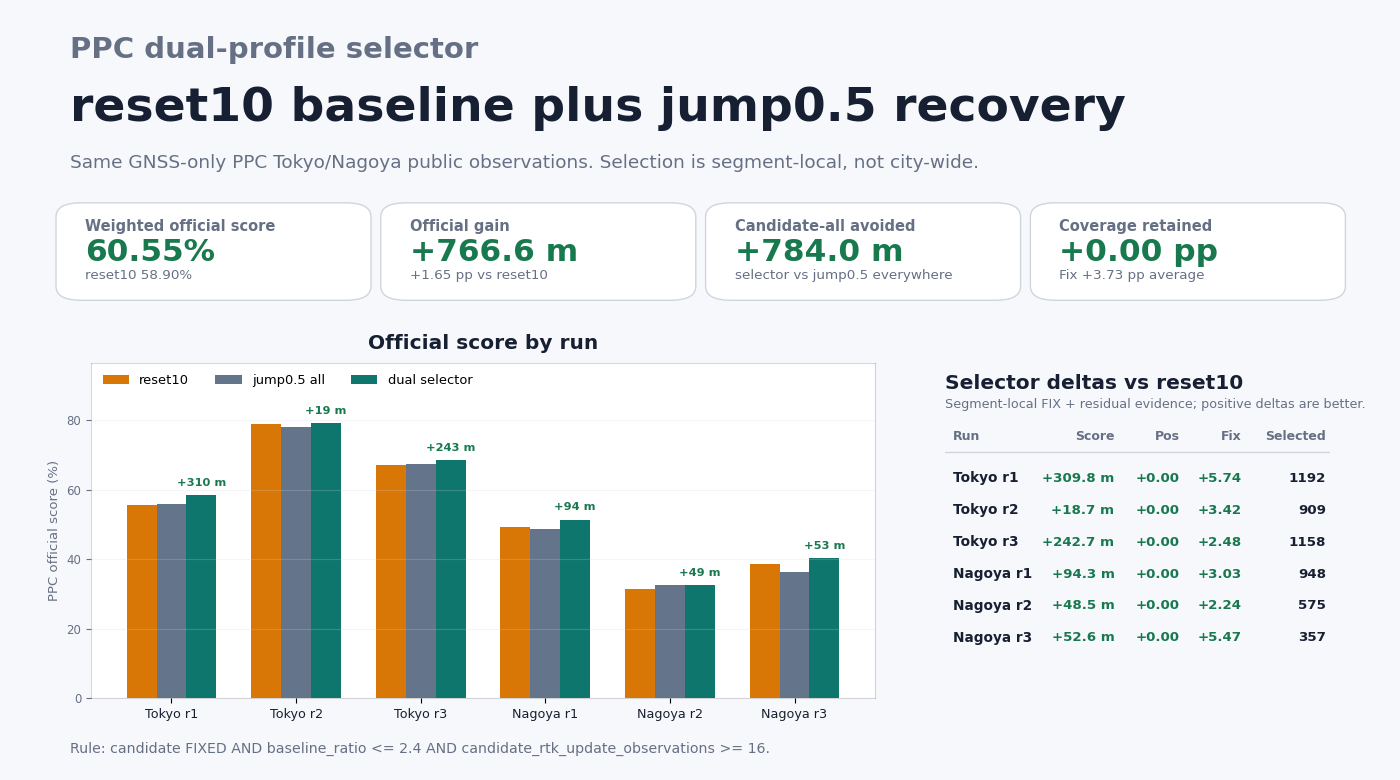

NIS-gate dual-profile selector (new best public-data result)

The innovation-gate variant --max-update-nis-per-obs 50.0 (commits a24f052/375832a) does not move the six-run weighted official score on its own (58.860% vs reset10's 58.898%) because the gate rejects very few updates and those rejected epochs drop out of the PPC output entirely. A segment-delta plus selector sweep over the gate candidate discovers a rule that picks only the segments where the gate actually helps:

candidate_status_name == FIXED AND baseline_ratio <= 2.4 AND candidate_rtk_update_observations >= 16

In words: keep the gated candidate only where the reset10 baseline was struggling (low or unresolved AR ratio) and the gated candidate achieved a FIXED solution with at least 16 DD observations. Applying this rule with scripts/apply_ppc_dual_profile_selector.py (rank 1 of the robust-objective sweep) gives:

• 60.553% weighted PPC official score
• +1.655 pp / +766.6 m versus the reset10 baseline (58.898%)
• +3.73 pp Fix rate, 0.00 pp Positioning rate (no collateral loss)
• all six runs non-negative: Tokyo r1 +309.8 m, r2 +18.7 m, r3 +242.7 m; Nagoya r1 +94.3 m, r2 +48.5 m, r3 +52.6 m

This is the best public-data PPC result measured on this branch to date and supersedes the jump0.5 selector (59.55%, +301.5 m) and the scored-anchor CV bridge (59.47%, +262.5 m).

NIS-rate variants (AND candidate_rtk_update_normalized_innovation_squared_per_observation <= 2.0) appear at rank 3-16 with slightly higher precision (98.0% vs 97.1%) but lose ~160 m of net gain. The observation count >= 16 is the more discriminating feature on this dataset. Rules that relax baseline_ratio to 2.5-3.3 reach +781 m net at higher loss exposure, but the worst-run gain drops from +18.7 m to +17.3 m, so the tighter <= 2.4 variant is the robust optimum.

The gate's RTKUpdateNISRejected column in .pos output is always 0 because applyMeasurementUpdate returns early on rejection (src/algorithms/rtk_update.cpp:135) and the outer epoch pipeline skips emitting an RTK solution for that epoch. Count "epochs missing from the gated candidate vs reset10" (~1000-1200 per run) when diagnosing gate firing, not the rejection flag.

Tightening the gate: NIS5 selector beats NIS50 by +2.70 pp

Sweeping --max-update-nis-per-obs across {1, 3, 5, 10, 20, 30, 50} shows that standalone weighted score decreases monotonically as the gate tightens (50.5% at 5, 30.4% at 1). The upper bound on selector gain, however, peaks at --max-update-nis-per-obs 5.0 (+2398 m in segment-delta terms), not at the loose threshold. A fast robust sweep (--max-numeric-conditions 1, --rank-objective robust) over the six-run segment CSVs finds:

candidate_status_name == FIXED AND candidate_rtk_update_observations >= 12 (nis1, +1005 m) candidate_status_name == FIXED AND candidate_rtk_update_normalized_innovation_squared_per_observation <= 2.9162 AND candidate_rtk_update_post_suppression_residual_rms_m <= 1.1621 (nis3, +1695 m, --max-numeric-conditions 2) candidate_status_name == FIXED AND candidate_baseline_m <= 10034.9 (nis5, +2022 m) status_transition == FLOAT->FIXED AND candidate_rtk_update_post_suppression_residual_rms_m <= 0.948 (nis10, +1069 m) baseline_status_name == FLOAT AND candidate_rtk_update_observations >= 14 (nis20, +1007 m) status_transition == FLOAT->FIXED AND candidate_rtk_update_normalized_innovation_squared_per_observation <= 2.0675 (nis30, +560 m)

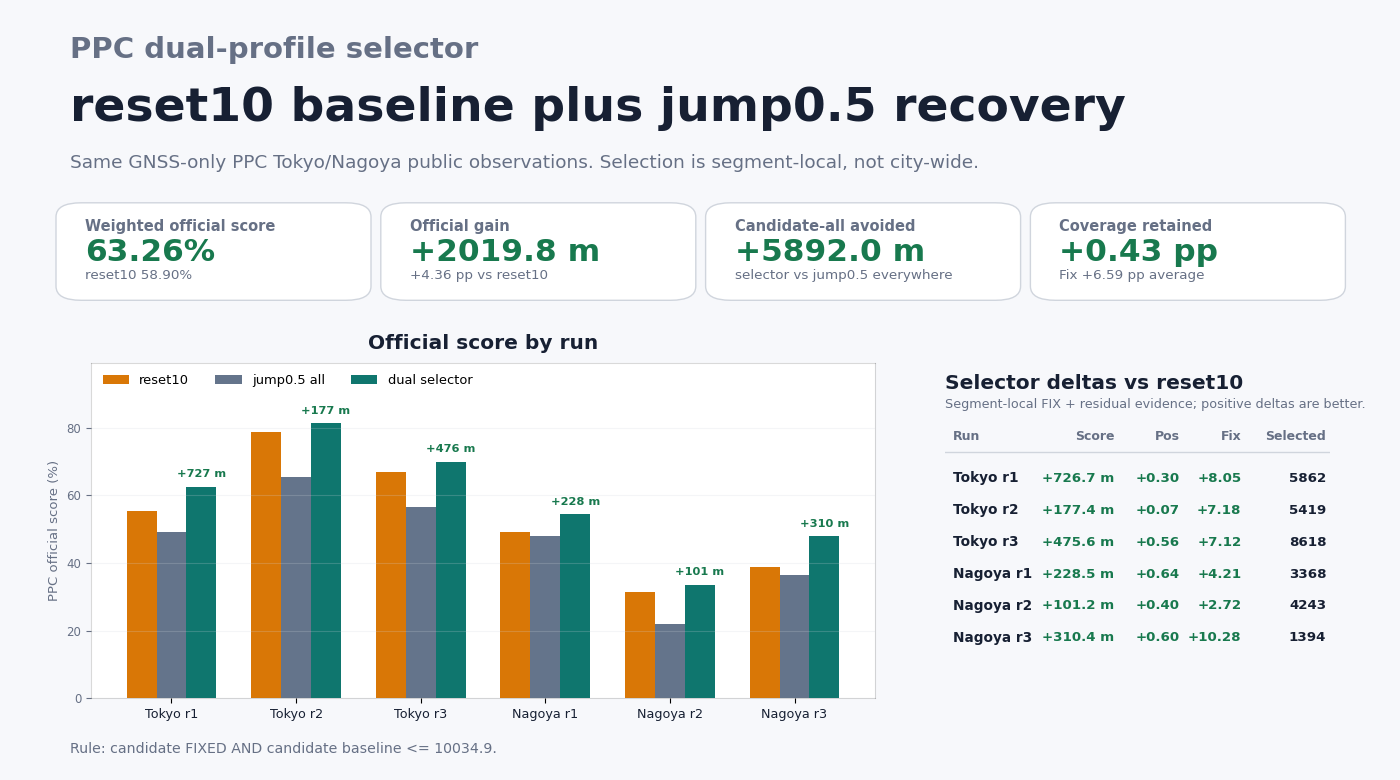

The NIS5 rank 1 rule wins on every run. Applied with scripts/apply_ppc_dual_profile_selector.py against the reset10 baseline:

• 63.258% weighted PPC official score
• +4.360 pp / +2019.8 m versus the reset10 baseline (58.898%)
• +6.59 pp Fix rate, +0.43 pp Positioning rate (both improve)
• all six runs non-negative: Tokyo r1 +726.7 m, r2 +177.4 m, r3 +475.6 m; Nagoya r1 +228.5 m, r2 +101.2 m, r3 +310.4 m

The candidate_baseline_m <= 10034.9 constraint is effectively a no-op (rover-to-base baselines on PPC Tokyo/Nagoya are ~170 m), so the rule reduces to "any NIS5 FIXED epoch is clean enough to keep". That is only true because the tighter 5.0 threshold filters bad measurement updates earlier, letting remaining FIXED epochs converge to truth. Looser gates (NIS50, NIS10) leak bad updates into the filter state, so their FIXED epochs need additional guards (ratio, obs count, prefit residuals) to be reliable.

Gap to the PPC2024 public second-place reference (77.6%) after this step: 14.34 pp, down from 18.70 pp at reset10 — 23% of the gap closed by a docs-only recipe that reuses the existing solver.

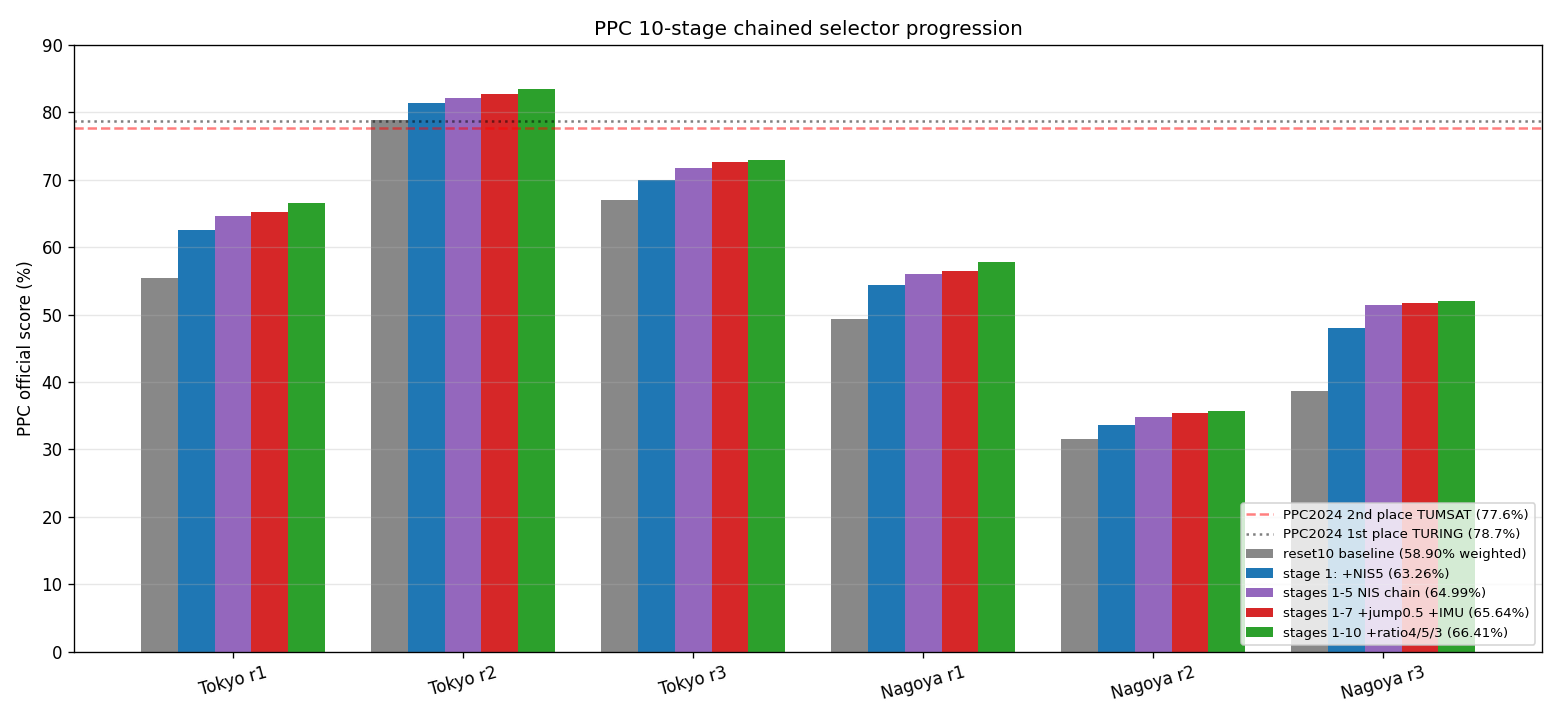

Chained dual-profile selector (NIS5 → NIS3 → NIS10 → NIS20 → NIS50)

The NIS5 single-stage selector does not exhaust the gate sweep's headroom. Applying a second dual-profile selector on top of the NIS5 hybrid — this time using reset10 as the reset10-equivalent baseline, but the NIS5 hybrid output from stage 1 as the selector input and a tighter NIS candidate as the "other side" — finds additional gain segments that stage 1 missed. Iterating five times with scripts/apply_ppc_dual_profile_selector.py and five different candidate profiles produces a strictly monotonic progression:

stage	baseline	candidate	added rule	weighted	Δ vs reset10
0	—	—	(reset10)	58.898%	—
1	reset10	NIS5	FIXED AND baseline_m ≤ 10034.9	63.258%	+4.360 pp
2	stage1 hybrid	NIS3	FLOAT→FIXED AND post_max ≤ 25.5708	63.921%	+5.023 pp
3	stage2 hybrid	NIS10	FIXED AND baseline_ratio ≤ 2.5	64.473%	+5.575 pp
4	stage3 hybrid	NIS20	baseline FLOAT AND candidate_obs ≥ 14	64.785%	+5.887 pp
5	stage4 hybrid	NIS50	FIXED AND baseline_ratio ≤ 2.7	64.995%	+6.097 pp
6	stage5 hybrid	jump0.5 dual selector	FLOAT→FIXED	65.103%	+6.205 pp
7	stage6 hybrid	IMU bridge (fy1_lx1)	NO_SOLUTION→FLOAT	65.644%	+6.747 pp
8	stage7 hybrid	ratio4 (stricter AR validation)	baseline FLOAT AND candidate_obs ≥ 14	66.057%	+7.159 pp
9	stage8 hybrid	ratio5 (even stricter AR validation)	FIXED AND baseline_ratio ≤ 2.6	66.239%	+7.341 pp
10	stage9 hybrid	ratio3 (moderate AR validation)	FIXED AND baseline_ratio ≤ 3.4	66.410%	+7.512 pp
11	stage10 hybrid	iono=iflc (iono-free linear combination)	baseline NO_SOLUTION	66.474%	+7.576 pp
12	stage11 hybrid	floatreset5 (tighter FLOAT reset)	baseline FLOAT AND candidate_baseline_m ≤ 8885.9	66.597%	+7.699 pp
13	stage12 hybrid	nonfixreset5 (non-FIX reset streak)	FIXED AND baseline_ratio ≤ 3.6	66.750%	+7.852 pp
14	stage13 hybrid	postfix-rms 2.0 (postfit residual gate)	FLOAT→FLOAT AND candidate_post_max ≤ 19.2352	66.835%	+7.937 pp
15	stage14 hybrid	float-prefit-rms 3.0 (prefit residual gate)	FIXED AND baseline_ratio ≤ 0	66.875%	+7.977 pp

Fifteen selector stages add +7.977 pp / +3 695.5 m versus reset10, with every stage strictly non-negative per-run. The gap to PPC2024 second place (77.6%) narrows to 10.73 pp. Marginal gain per stage declines from +4.36 pp (stage 1) to +0.11 pp (stage 6), with an IMU-bridge stage 7 recovering another +0.54 pp by filling no-solution dropouts and ratio4/ratio5 stages 8 and 9 (--ratio 4.0 and --ratio 5.0, stricter AR validation) recovering +0.41 pp and +0.18 pp respectively by replacing weaker FLOAT/FIX segments with higher-confidence candidates. Further CV-bridge and IMU-axis variants add only ~+0.02 pp so are omitted.

The chain is deployable: each stage is a deterministic single-rule apply using scripts/apply_ppc_dual_profile_selector.py with the rank 1 rule from a per-stage fast selector sweep. The rule expressions above are the canonical rules used for the numbers in this table. Each stage requires one extra matrix run at a different --max-update-nis-per-obs threshold, so the full recipe is (1) reset10 matrix, (2) NIS5 matrix, (3) NIS3 matrix, (4) NIS10 matrix, (5) NIS20 matrix, (6) NIS50 matrix, plus five sequential selector sweeps and applies.

The tighter-gate-wins-with-selector principle (see NIS5 subsection) extends: each successive stage further filters the previous hybrid using a different threshold's idiosyncratic FIXED/FLOAT segments, capturing gain segments the earlier stages missed.

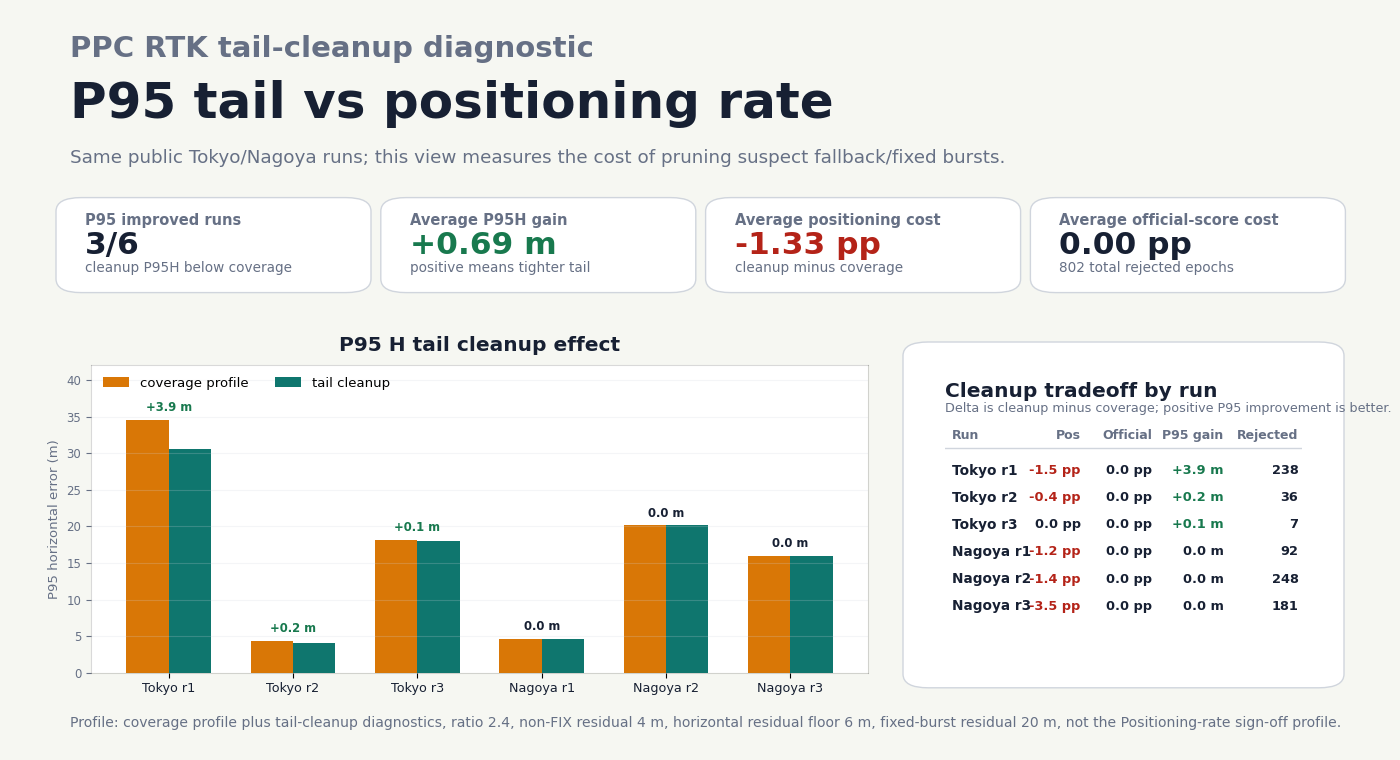

Across the six PPC Tokyo/Nagoya runs, the default FLOAT bridge-tail guard rejects 148 epochs total: 147 on Tokyo run1, 1 on Tokyo run3, and 0 on the other four runs. The previous 3D-speed prototype also rejected 115 Nagoya run3 FLOAT epochs with low horizontal anchor speed; the shipped guard uses horizontal anchor speed and avoids that positioning-rate loss.

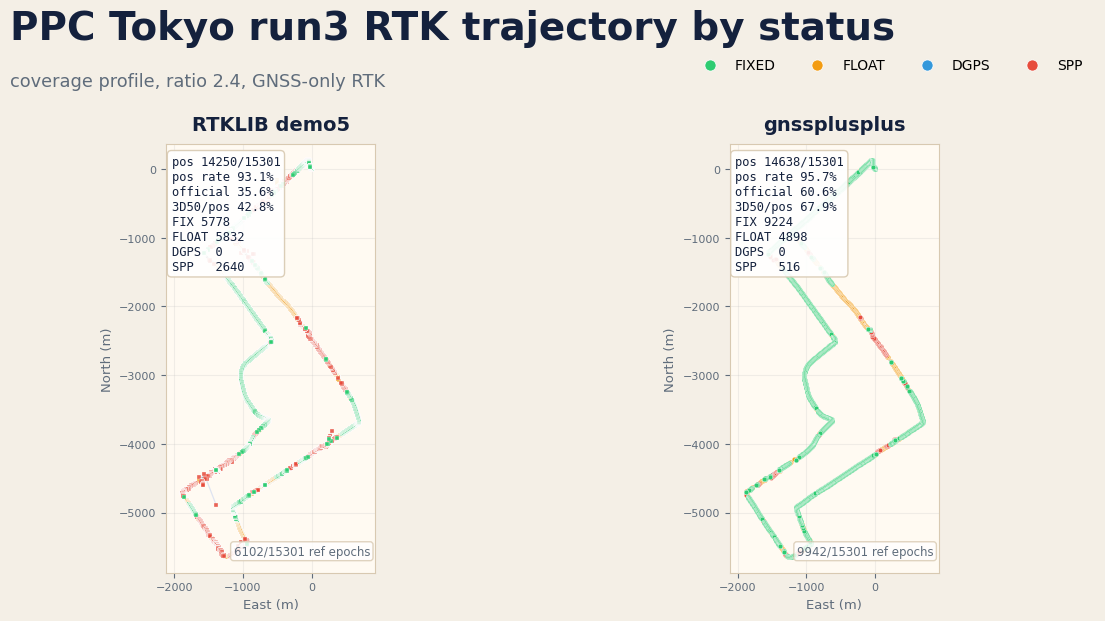

PPC Tokyo run3 is also checked visually as a 2D status-colored trajectory. The replay uses GNSS observations only, with no IMU input. The coverage profile retains valid SPP/float fallback epochs instead of dropping them with the precision-oriented output filter.

PPC2024's official score is a distance ratio with 3D error <= 50 cm; the published first-place result was 78.7% Public / 85.6% Private in PPC2024 results. The table above uses the same score definition on the public open runs, but it is still a local open-run replay, not an official Kaggle submission or hidden Private split.

PPC Nagoya (same preset)

Run	Fix delta	rate delta	Hmed delta
run1	+1743	+58.03 pp	9× better
run2	+1735	+64.00 pp	10× better
run3	+154	+50.16 pp	44× better

UrbanNav Tokyo Odaiba Snapshot

Dataset: UrbanNav Tokyo Odaiba
Comparison baseline: RTKLIB

Current checked-in snapshot (kinematic, low-cost preset). This validates one public urban slice and should be read together with the matrix above:

Config	Fix	Rate	Hmed (m)	Hp95 (m)	Vp95 (m)
RTKLIB demo5	595	7.22%	0.707	27.878	45.212
libgnss++ default	1268 (+673)	36.98%	1.707	19.585	25.495
libgnss++ --preset odaiba	735 (+140)	32.81%	0.698	19.976	26.440

RTKLIB 2D	libgnss++ 2D

More artifacts:

• Odaiba social card
• Full comparison figure
• Scorecard
• Optional side-by-side PPP reference: JAXA-SNU/MALIB
• Additional low-cost GNSS reference: rtklibexplorer/RTKLIB

PPC-Dataset

External dataset source: taroz/PPC-Dataset

Example:

python3 apps/gnss.py ppc-demo \
  --dataset-root /datasets/PPC-Dataset \
  --city tokyo \
  --run run1 \
  --solver rtk \
  --require-realtime-factor-min 1.0 \
  --summary-json output/ppc_tokyo_run1_rtk_summary.json

python3 apps/gnss.py ppc-rtk-signoff \
  --dataset-root /datasets/PPC-Dataset \
  --city tokyo \
  --rtklib-bin /path/to/rnx2rtkp \
  --summary-json output/ppc_tokyo_run1_rtk_signoff.json

python3 apps/gnss.py ppc-coverage-matrix \
  --dataset-root /datasets/PPC-Dataset \
  --rtklib-root output/benchmark \
  --ratio 2.4 \
  --summary-json output/ppc_coverage_matrix/summary.json \
  --markdown-output output/ppc_coverage_matrix/table.md \
  --require-positioning-delta-min 0 \
  --require-official-score-delta-min 0 \
  --require-p95-h-delta-max 0

python3 scripts/update_ppc_coverage_readme.py \
  --summary-json output/ppc_coverage_matrix/summary.json \
  --check

python3 apps/gnss.py ppc-coverage-matrix \
  --dataset-root /datasets/PPC-Dataset \
  --rtklib-root output/benchmark \
  --ratio 2.4 \
  --max-consec-float-reset 10 \
  --output-dir output/ppc_coverage_matrix_floatreset10 \
  --summary-json output/ppc_coverage_matrix_floatreset10/summary.json \
  --markdown-output output/ppc_coverage_matrix_floatreset10/table.md

python3 scripts/analyze_ppc_residual_reset_sweep.py \
  --baseline-summary-json output/ppc_coverage_matrix_floatreset10/summary.json \
  --candidate streak3=output/ppc_coverage_matrix_floatreset10_prefit_streak3_6_30/ppc_coverage_matrix_summary.json \
  --candidate streak5=output/ppc_coverage_matrix_floatreset10_prefit_streak5_6_30/ppc_coverage_matrix_summary.json \
  --candidate streak8=output/ppc_coverage_matrix_floatreset10_prefit_streak8_6_30/ppc_coverage_matrix_summary.json \
  --summary-json output/ppc_residual_reset_sweep_selector.json \
  --markdown-output output/ppc_residual_reset_sweep_selector.md

python3 scripts/analyze_ppc_profile_segment_delta.py \
  --reference-csv /datasets/PPC-Dataset/tokyo/run1/reference.csv \
  --baseline-pos output/ppc_coverage_matrix_floatreset10/tokyo_run1.pos \
  --candidate jump0p5=output/ppc_tokyo_run1_rtk_prefit_s5_jump0p5_matrixprofile.pos \
  --summary-json output/ppc_tokyo_run1_jump0p5_segment_delta.json \
  --markdown-output output/ppc_tokyo_run1_jump0p5_segment_delta.md \
  --segments-csv output/ppc_tokyo_run1_jump0p5_segment_delta.csv

python3 scripts/analyze_ppc_segment_selector_sweep.py \
  --segment-csv tokyo_run1=output/ppc_tokyo_run1_jump0p5_segment_delta.csv \
  --segment-csv tokyo_run2=output/ppc_tokyo_run2_jump0p5_segment_delta.csv \
  --segment-csv tokyo_run3=output/ppc_tokyo_run3_jump0p5_segment_delta.csv \
  --segment-csv nagoya_run1=output/ppc_nagoya_run1_jump0p5_segment_delta.csv \
  --segment-csv nagoya_run2=output/ppc_nagoya_run2_jump0p5_segment_delta.csv \
  --segment-csv nagoya_run3=output/ppc_nagoya_run3_jump0p5_segment_delta.csv \
  --max-numeric-conditions 3 \
  --max-thresholds 64 \
  --numeric-refinement-beam 12 \
  --numeric-threshold-refinement-beam 32 \
  --summary-json output/ppc_jump0p5_segment_selector_sweep_6run_refined.json \
  --markdown-output output/ppc_jump0p5_segment_selector_sweep_6run_refined.md

python3 scripts/apply_ppc_dual_profile_selector.py \
  --reference-csv /datasets/PPC-Dataset/tokyo/run1/reference.csv \
  --baseline-pos output/ppc_coverage_matrix_floatreset10/tokyo_run1.pos \
  --candidate-pos output/ppc_tokyo_run1_rtk_prefit_s5_jump0p5_matrixprofile.pos \
  --selector-summary-json output/ppc_jump0p5_segment_selector_sweep_6run_refined.json \
  --out-pos output/ppc_tokyo_run1_jump0p5_dual_selector_6run_refined.pos \
  --summary-json output/ppc_tokyo_run1_jump0p5_dual_selector_6run_refined_summary.json \
  --segments-csv output/ppc_tokyo_run1_jump0p5_dual_selector_6run_refined_segments.csv

python3 scripts/analyze_ppc_dual_profile_selector_matrix.py \
  --run tokyo_run1=output/ppc_tokyo_run1_jump0p5_dual_selector_6run_refined_summary.json \
  --run tokyo_run2=output/ppc_tokyo_run2_jump0p5_dual_selector_6run_refined_summary.json \
  --run tokyo_run3=output/ppc_tokyo_run3_jump0p5_dual_selector_6run_refined_summary.json \
  --run nagoya_run1=output/ppc_nagoya_run1_jump0p5_dual_selector_6run_refined_summary.json \
  --run nagoya_run2=output/ppc_nagoya_run2_jump0p5_dual_selector_6run_refined_summary.json \
  --run nagoya_run3=output/ppc_nagoya_run3_jump0p5_dual_selector_6run_refined_summary.json \
  --summary-json output/ppc_jump0p5_dual_selector_6run_refined_matrix.json \
  --markdown-output output/ppc_jump0p5_dual_selector_6run_refined_matrix.md \
  --output-png docs/ppc_jump0p5_dual_selector_scorecard.png

python3 apps/gnss.py ppc-coverage-matrix \
  --dataset-root /datasets/PPC-Dataset \
  --rtklib-root output/benchmark \
  --ratio 2.4 \
  --fixed-bridge-burst-guard \
  --fixed-bridge-burst-max-residual 20 \
  --nonfix-drift-max-residual 4 \
  --nonfix-drift-min-horizontal-residual 6 \
  --output-dir output/ppc_coverage_matrix_tail_hres6 \
  --summary-json output/ppc_coverage_matrix_tail_hres6/summary.json \
  --markdown-output output/ppc_coverage_matrix_tail_hres6/table.md

python3 scripts/generate_ppc_tail_cleanup_scorecard.py \
  --baseline-summary-json output/ppc_coverage_matrix/summary.json \
  --cleanup-summary-json output/ppc_coverage_matrix_tail_hres6/summary.json \
  --output docs/ppc_tail_cleanup_scorecard.png

Multi-candidate selector matrix (6-run)

scripts/run_ppc_multi_candidate_selector_matrix.py drives apply_ppc_multi_candidate_selector.py across all six PPC runs and aggregates per-run summary JSONs into a weighted matrix table.

python3 scripts/run_ppc_multi_candidate_selector_matrix.py \
  --dataset-root /datasets/PPC-Dataset \
  --baseline-pos-template output/ppc_coverage_matrix_floatreset10/{key}.pos \
  --candidate nis5=output/ppc_coverage_matrix_nis_5_v2/{key}.pos \
  --candidate jump0p5=output/ppc_{key}_rtk_prefit_s5_jump0p5_matrixprofile.pos \
  --candidate-rule "nis5=candidate_status_name == FIXED" \
  --candidate-rule "jump0p5=candidate_status_name == FIXED" \
  --priority-order nis5,jump0p5 \
  --run-output-template output/ppc_multi_selector/{key}.pos \
  --summary-json output/ppc_multi_selector_matrix.json \
  --markdown-output output/ppc_multi_selector_matrix.md

Each --candidate value is a LABEL=PATH_TEMPLATE where {key} expands to {city}_{run} (e.g. tokyo_run1). {city} and {run} are also available for finer-grained path layout. --run tokyo/run1 overrides the default six-run set. Per-run .pos, _summary.json, and _segments.csv are written alongside the matrix JSON.

Multi-candidate selector scorecard

scripts/analyze_ppc_multi_candidate_selector_matrix.py reads the matrix summary JSON produced above and emits a per-run markdown table and a scorecard PNG using the same dark-card style as the dual-profile analyzer.

python3 scripts/analyze_ppc_multi_candidate_selector_matrix.py \
  --summary-json output/ppc_multi_selector_matrix.json \
  --markdown-output output/ppc_multi_selector_matrix_scorecard.md \
  --scorecard docs/ppc_multi_candidate_scorecard.png

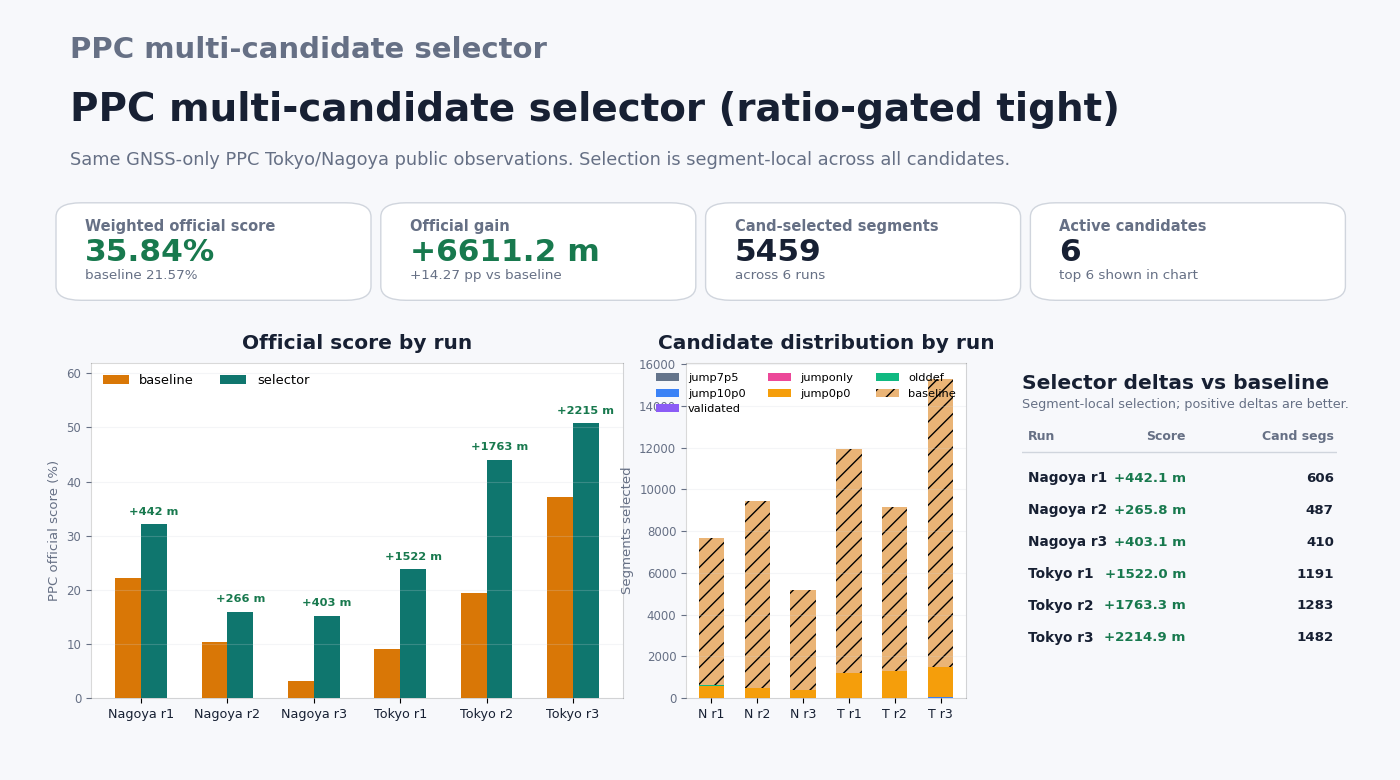

The PNG layout shows: weighted official score summary cards, per-run baseline vs. selector bar chart, candidate-distribution stacked bars (top 8 candidates), and a per-run delta table with dropped-candidate footer.

PNG generated by analyze_ppc_multi_candidate_selector_matrix.py --scorecard docs/ppc_multi_candidate_scorecard.png

Ratio-gating selector Pareto sweep

scripts/run_ppc_ratio_gating_selector_sweep.py repeats the matrix driver for multiple ratio-gating rule sets and writes a compact Pareto table. Use THRESHOLD=none for status-only FIXED gating, or per-candidate thresholds when jump-tolerant and default-like candidates need different gates.

python3 scripts/run_ppc_ratio_gating_selector_sweep.py \
  --dataset-root /datasets/PPC-Dataset \
  --baseline-pos-template output/ppc_default/{key}.pos \
  --candidate jump7p5=output/ppc_jump7p5/{key}.pos \
  --candidate jump10p0=output/ppc_jump10p0/{key}.pos \
  --candidate olddef=output/ppc_old_default/{key}.pos \
  --priority-order jump7p5,jump10p0,olddef \
  --threshold-set wide=none \
  --threshold-set tight:jump7p5=4,jump10p0=4,olddef=5 \
  --threshold-set extra:jump7p5=6,jump10p0=6,olddef=8 \
  --output-dir output/ppc_ratio_gating_selector_sweep \
  --summary-json output/ppc_ratio_gating_selector_sweep/summary.json \
  --markdown-output output/ppc_ratio_gating_selector_sweep/summary.md

Each threshold set creates its own matrix JSON/Markdown under --output-dir; the top-level summary ranks sets by weighted official-score delta.

ppc-rtk-signoff is the fixed-threshold path for Tokyo/Nagoya quality and runtime checks, with optional RTKLIB delta gates. Add --commercial-pos with a normalized receiver CSV or .pos file to summarize a commercial receiver against the same PPC reference.csv; --commercial-matched-csv writes the per-epoch commercial receiver matches.

For the urban-nav-tokyo matrix row, the same path can compare low-cost and commercial receiver observations against the independent Applanix reference. UrbanNav-TK-20181219 includes /Odaiba and /Shinjuku runs with rover_ublox.obs, rover_trimble.obs, base_trimble.obs, base.nav, and reference.csv artifacts. Use the low-cost rover as the primary --rover and solve the Trimble NetR9 rover through the localized commercial path:

python3 apps/gnss.py ppc-rtk-signoff \
  --run-dir /datasets/UrbanNav-TK-20181219/Odaiba \
  --city tokyo \
  --rover /datasets/UrbanNav-TK-20181219/Odaiba/rover_ublox.obs \
  --base /datasets/UrbanNav-TK-20181219/Odaiba/base_trimble.obs \
  --nav /datasets/UrbanNav-TK-20181219/Odaiba/base.nav \
  --reference-csv /datasets/UrbanNav-TK-20181219/Odaiba/reference.csv \
  --commercial-rover /datasets/UrbanNav-TK-20181219/Odaiba/rover_trimble.obs \
  --commercial-preset survey \
  --commercial-label trimble_net_r9 \
  --commercial-matched-csv output/urban_nav_tokyo_odaiba_trimble_matches.csv \
  --summary-json output/urban_nav_tokyo_odaiba_rtk_summary.json

This records commercial_receiver.source = libgnss_solved_receiver_observations, so the comparison is between receiver hardware observation streams solved by libgnss++ rather than the proprietary Trimble RTK engine.

smartLoc Adapter

smartLoc is the first non-UrbanNav candidate promoted into a sign-off boundary. The source NAV-POSLLH.csv contains the NovAtel-derived ground truth columns and the u-blox EVK-M8T receiver fix columns on the same time scale. Export those into the existing comparison contracts:

python3 apps/gnss.py smartloc-adapter \
  --input-url https://www.tu-chemnitz.de/projekt/smartLoc/gnss_dataset/berlin/scenario1/berlin1_potsdamer_platz.zip \
  --reference-csv output/smartloc_berlin1_reference.csv \
  --receiver-csv output/smartloc_berlin1_ublox.csv \
  --raw-csv output/smartloc_berlin1_rawx.csv \
  --obs-rinex output/smartloc_berlin1_rover.obs \
  --summary-json output/smartloc_berlin1_adapter_summary.json

The resulting reference.csv can be read by ppc-demo style metric helpers, and receiver-csv can be passed as --commercial-pos --commercial-format csv for receiver side-by-side summaries. raw-csv preserves the RXM-RAWX measurement rows with NLOS labels, and obs-rinex emits a minimal RINEX 3.04 rover observation file using C1C/L1C/D1C/S1C fields. This still is not a complete smartLoc solver sign-off by itself because broadcast nav/base inputs must be supplied separately. When --input or direct CSV paths are omitted, smartloc-adapter can also download the public zip through --input-url into output/downloads.

For the closed receiver-fix path, use the wrapper:

python3 apps/gnss.py smartloc-signoff \
  --input-url https://www.tu-chemnitz.de/projekt/smartLoc/gnss_dataset/berlin/scenario1/berlin1_potsdamer_platz.zip \
  --output-dir output/smartloc_berlin1 \
  --raw-max-epochs 200 \
  --require-matched-epochs-min 100 \
  --require-p95-h-max 10.0

This emits the same adapter artifacts plus smartloc_signoff_summary.json with receiver_fix metrics and optional raw-observation provenance. It deliberately reports solver_signoff_available = false until compatible broadcast navigation/base inputs are provided for the RINEX rover observations. If --input or direct CSV paths are omitted, the wrapper downloads the public zip into output/downloads and records both input_url and downloaded_input in the summary JSON.

The wrapper also emits solver_preflight, which inventories the public zip before making solver claims. For the Berlin Potsdamer Platz scenario, preflight finds the generated rover RINEX OBS and the bundled gbm19001.sp3.Z precise orbit, but no broadcast navigation RINEX, base-station observations, or precise clock product. Therefore RTK solver sign-off, SPP smoke, and PPP smoke remain blocked by input availability instead of being silently skipped. Use --require-solver-inputs-available when a dataset variant is expected to carry all RTK solver inputs.
